NEXYAD has developped integrated systems that can work together and allow to test in a quantitative way wiper systems (including mechanical parts, rain sensors, and intelligent heuristics). Instead of "waiting

for the rain" in order to test a new wiper system, it is now possible to generate scenarios of light and rain (reproductable) and to estimate how the wiper system helps to recover visibility when the lack of visibility is due to the rain laid on the windshield.

Qualitative feeling of "good wiping" is replaced with quantitative scores (that were demonstrated to be highly correlated with humain sensory feeling). NEXYAD tools are in use in the Automotive industry (car manufacturers and rain sensors or wipers providers).



 - Open hardware and software architecture :

The NEXYAD open architecture lets you the choice :  - you may integer our application softwares (such as VisiNex or DropNex, see further) into your architecture (as soon as you feed them with the proper expected and documented format),  - you may integer your hardware components (example : rain machine, wind machine, lights, ...) into our architecture and let them be piloted by our environment,

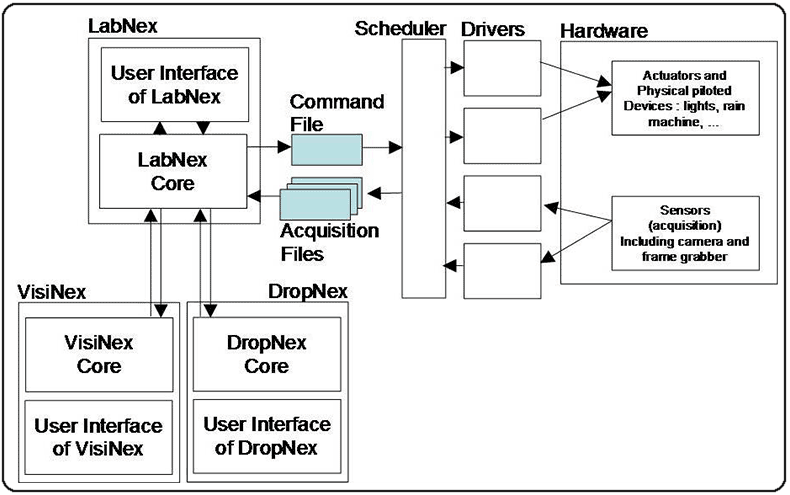

- you may buy our complete system, LabNex lets you declare every intput and output for the application (with their name, physical unit, min and max values, ...) and lets you draw chronograms for every piloted output (example : rain, light, wind). LabNex reads and writes script files (format documented). The Scheduler reads the script files and builds the real time loop for acquisitions (signals, image

real time loop for acquisitions (signals, image sequence, ...), and piloting (rain, lights, wind, ...). The acquired data (images, signals, ...) are recorded into files. The Scheduler is the only brick that is hardware sensitive (it is linked with the hardware drivers). The application modules (VisiNex and DropNex) read these files, and compute technical results (see further). They generate .csv ASCII files (so you can plot your results with regular tools).

 - RainNex^TM :

RainNexTM is a rain machine that generates artificial rain very similar to natural rain. RainNexTM is programmable and generates reproductables chronograms of rain and light (option : important because influence of rain on visibility also depends on lights values) ... NO NEED TO WAIT FOR THE RAIN ANYMORE !

Functional important characteristics of RainNex :  - can generate with 1 "rain generator head", up to 216 different kinds of rain  - homogenous rain with a given size of drops and a given stream flow - heterogenous rain with different kinds of drops (size and stream flow) mixed together : example : thin rain with some big drops falling from the trees. - no ON-delay, no OFF-delay : going from a rain to another is almost intantaneous. - can be used with 2 (or more) synchronized rain generator heads (example : one for the rain sensor area, one for the VisiNex or DropNex measurement area) : because heads are mobile, it is easy to test several locations for your rain sensor (for instance).

- can run a complex sequence of rain  - highly statistically reproductable rain (reproductibility of RainNex or any other rain machine can be tested with DropNex - see below).  - pilotable by any real time scheduler

- LabNex^TM :

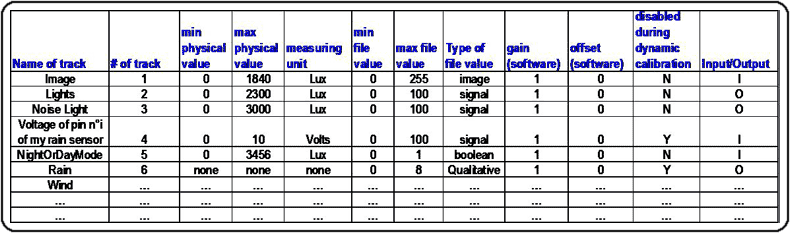

LabNexTM is a software module that lets you declare every input and output of your applications : Then, for every output variable, LabNex lets you plot chronograms that will pilot the hardware device (example : rain, light, wind). Chronograms are made of elementary chronograms called "phases". The user can then manipulate phases together in order to build higher level chronograms called "scenarios".

- DropNex^TM :

acquired image at time t

detection image at time t



DropNexTM is an artificial vision-based system that acquires images focused on the windscreen, and computes among time, parameters such as : number of drops, size of drops statistics (mean, standard deviation, ...), ratio of wet surface (water may flow on the windscreen without making drops ...), ... Water is detected and a classification allows to recognize drops from running water or big clusters of drops. DropNexTM also lets you acquire signal from your own systems (example : if you are a rain sensors provider, you want to know, for every rain characteristic, which value are taken by every internal variable of your sensor ...). DropNex was made to control and measure rain coming from a rain machine (ex : RainNex) in a Laboratory. But recently, a new version of DropNex also allows to make measurements OUTSIDE !  (while regular driving)

It means that representativity of artificial rain can now be estimated in a quantitative way (if statistics of your artificial rains are similar to statistics of natural rains, you are sure that tests in the Lab are valuable).

You need DropNex if you wish to buy a rain machine :  - validate a rain machine : once your supplier delivers the rain machine, you can test it in order to make sure that the desired rains can be generated.  - tune a rain machine : during tests, you may want to generate a new kind of rain (that you found as being an interesting kind of natural rain). So you can use DropNex in order to measure the statistics of your aritificial rain (you tune the technical parameters as long as you don't have the expected rain statistics).

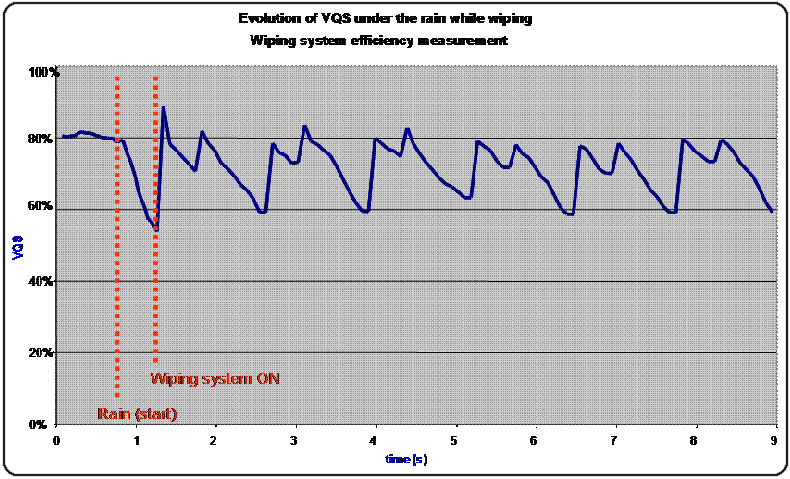

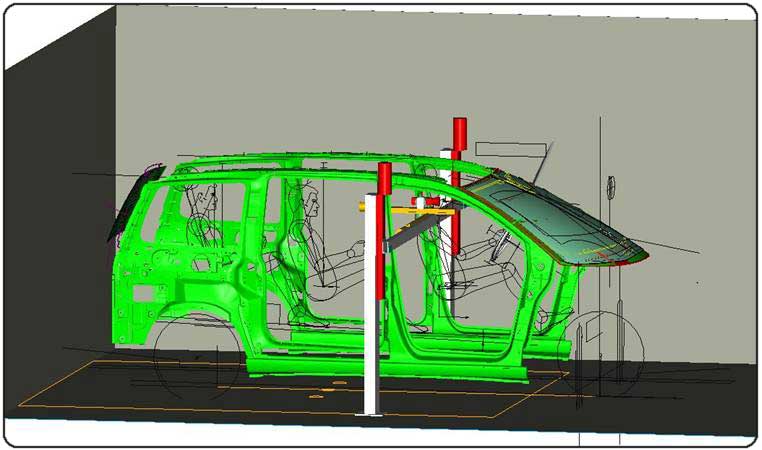

The wiper system allows to recover a part of this visibility

See also FAQ about VisiNex
